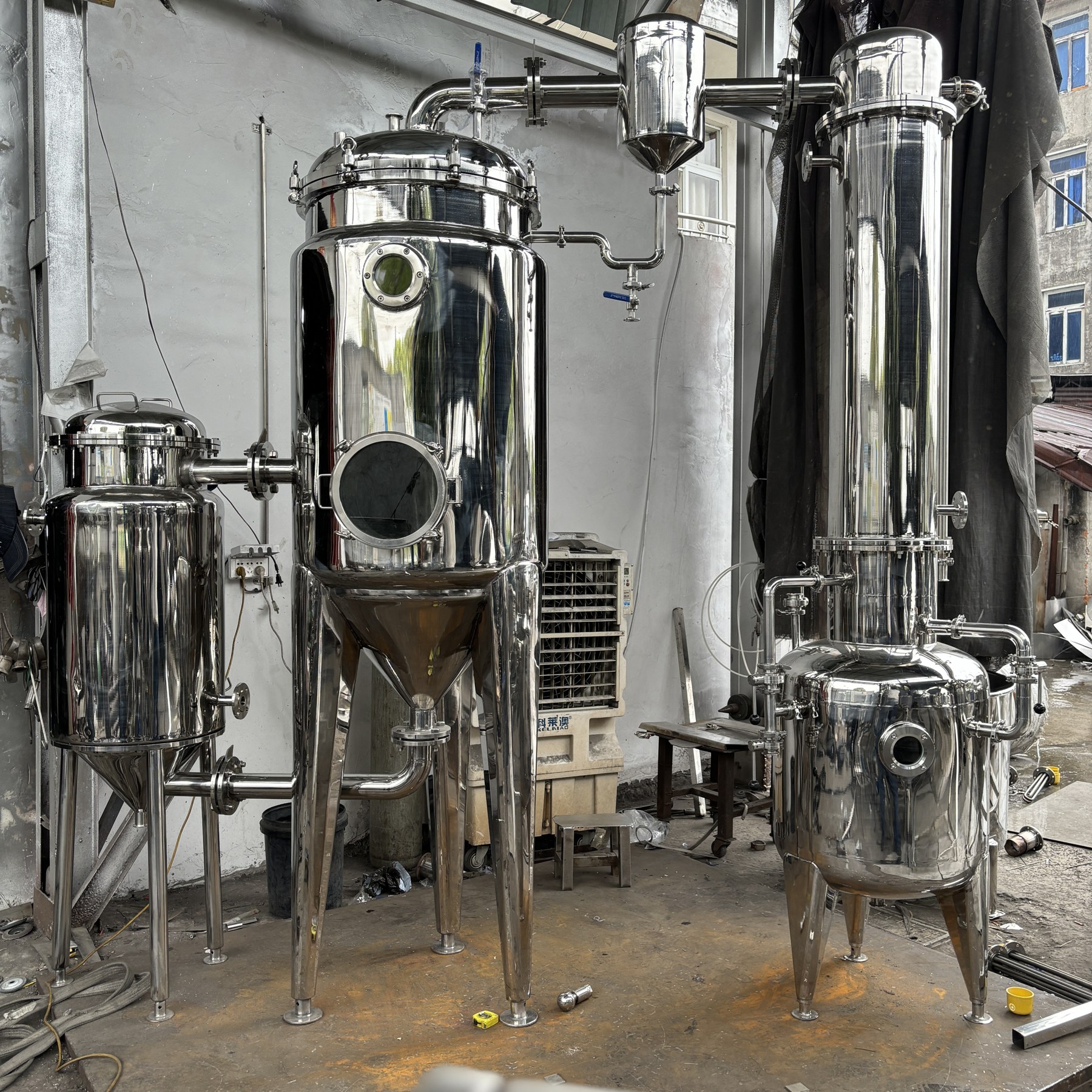

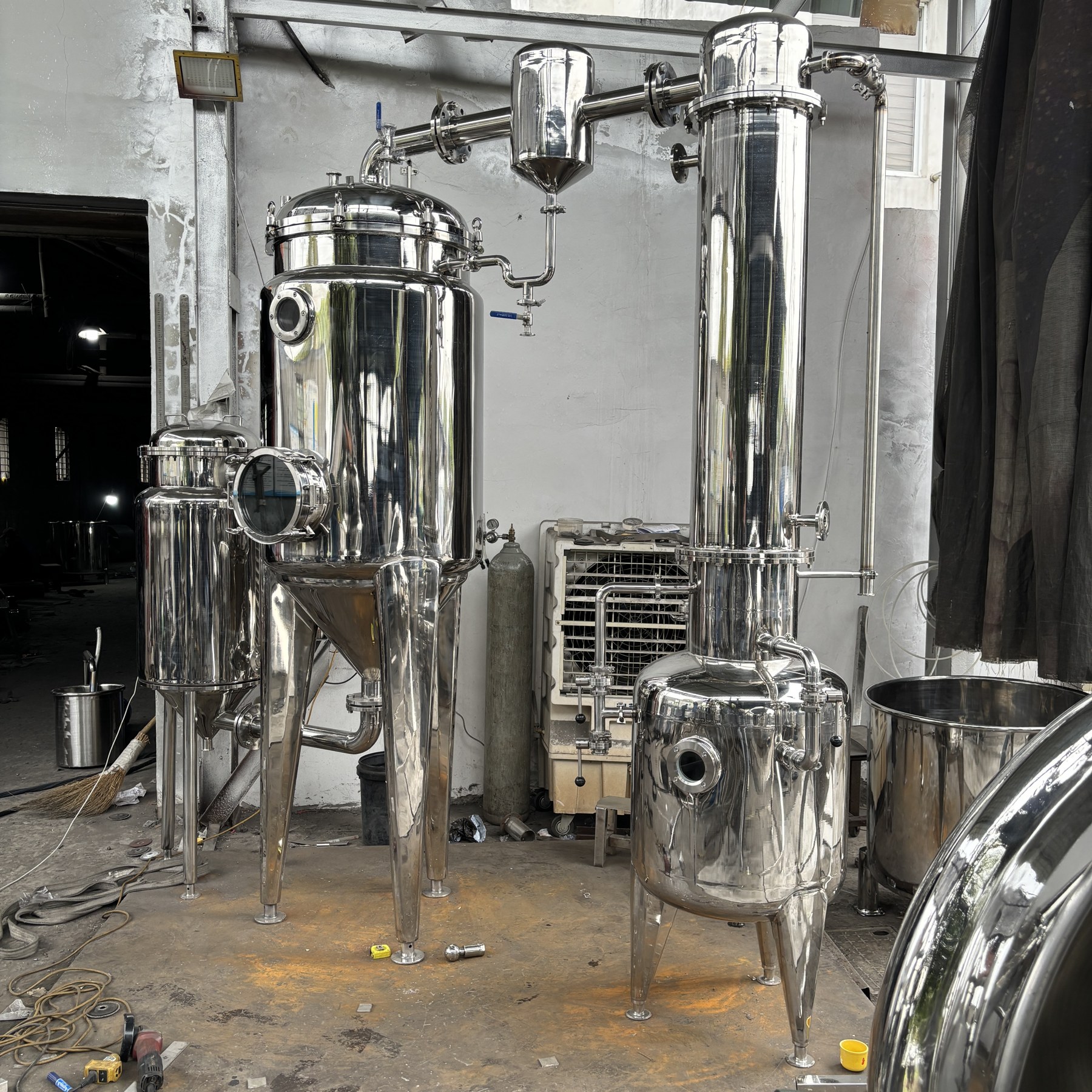

The vacuum concentration tank is energy-saving concentration equipment designed for material liquid concentration. Under vacuum low-temperature environment, it realizes rapid evaporation and concentration of water and solvent, effectively protecting heat-sensitive active ingredients from damage. The equipment features fast concentration speed, high concentration multiple and no material loss. It is widely used for concentration of traditional Chinese medicine liquid, fruit juice, biological liquid and chemical solvent materials.
| Parameter | Specification |
|---|---|
| Material | SS304/SS316L Stainless Steel |
| Evaporation Capacity | 50-2000L/h |
| Working Vacuum | -0.06~-0.09MPa |
| Concentration Temperature | 45℃-80℃ (Low Temperature) |
| Heating Method | Steam / Electric Heating |
| Feature | Low Temperature Concentration, Protect Active Ingredients |
| Application | Medicinal Liquid, Fruit Juice, Biological Liquid Concentration |
